For the past few weeks, I’ve had the opportunity to test the Cooler Master MasterFrame 500 Mesh, the newest mid-tower ATX case in their enthusiast-grade MasterFrame lineup. MasterFrame cases are built around Cooler Master’s open-source, community-driven FreeForm 2.0 design philosophy, which promises reliable, modular products that users can customize to meet the needs of even the most challenging builds.
It’s a compelling idea, and I was eager to see how the MasterFrame 500 Mesh would deliver. In short, the Cooler Master MasterFrame 500 Mesh is an undeniably well-made case that will both impress and frustrate builders in equal measure. The design is ambitious and full of striking contrasts: an elegantly crafted, tasteful exterior paired with an austere, industrial interior. Its spacious layout offers incredible modular potential, yet it feels cramped and unforgiving to work in, with some puzzling limitations. It can meet the needs of enthusiasts and modders, but it’s not very builder-friendly.
The core idea behind the MasterFrame 500 Mesh is that you’re not just buying a case, you’re investing in a platform. It is an adaptable system you can grow into. In practical terms, that means paying a premium for the option to upgrade over time. With the right skills and tools, FreeForm 2.0 makes it easy to design and fabricate custom parts using the free CAD files provided by Cooler Master. They also sell their own line of add-ons, including panels with wood and stone accents. It’s a powerful concept, but one that works best in the hands of experienced builders or very determined beginners.
PC builders are a bit like hermit crabs: once they find a stylish, breathable case that can hold all their components, they’ll cling to it until they need more room. Luckily, PC cases, like shells, are built to outlast the ephemeral parts they house. A good case can last for decades, only becoming obsolete when its style becomes outdated or its fasteners finally strip. A high-quality chassis is one of the few long-term investments a builder can make. Choosing the right one can save you a lot of money in the long run.
To that end, the MasterFrame 500 Mesh stands out as an exceptional choice. It is a “forever case” whose robust construction will easily outlive any PC build, and likely even the builder. Its understated, minimalist exterior offers timeless appeal reminiscent of the Mac Pro G5. Style trends come and go, but the clean lines and bare-metal or black finish of this case are evergreen, the electronics world’s equivalent of jeans and a T-shirt. Simply put, it will never go out of fashion.

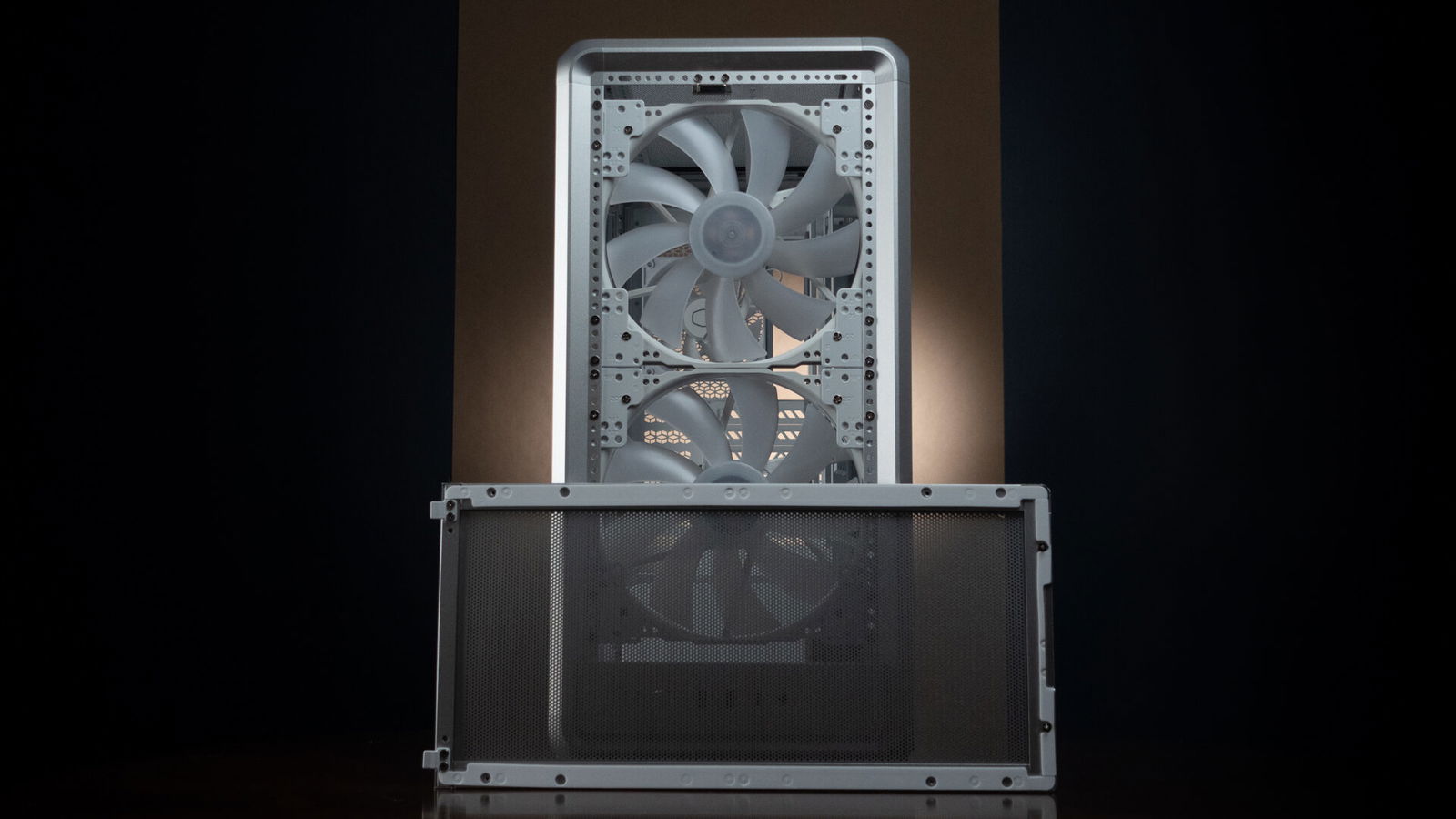

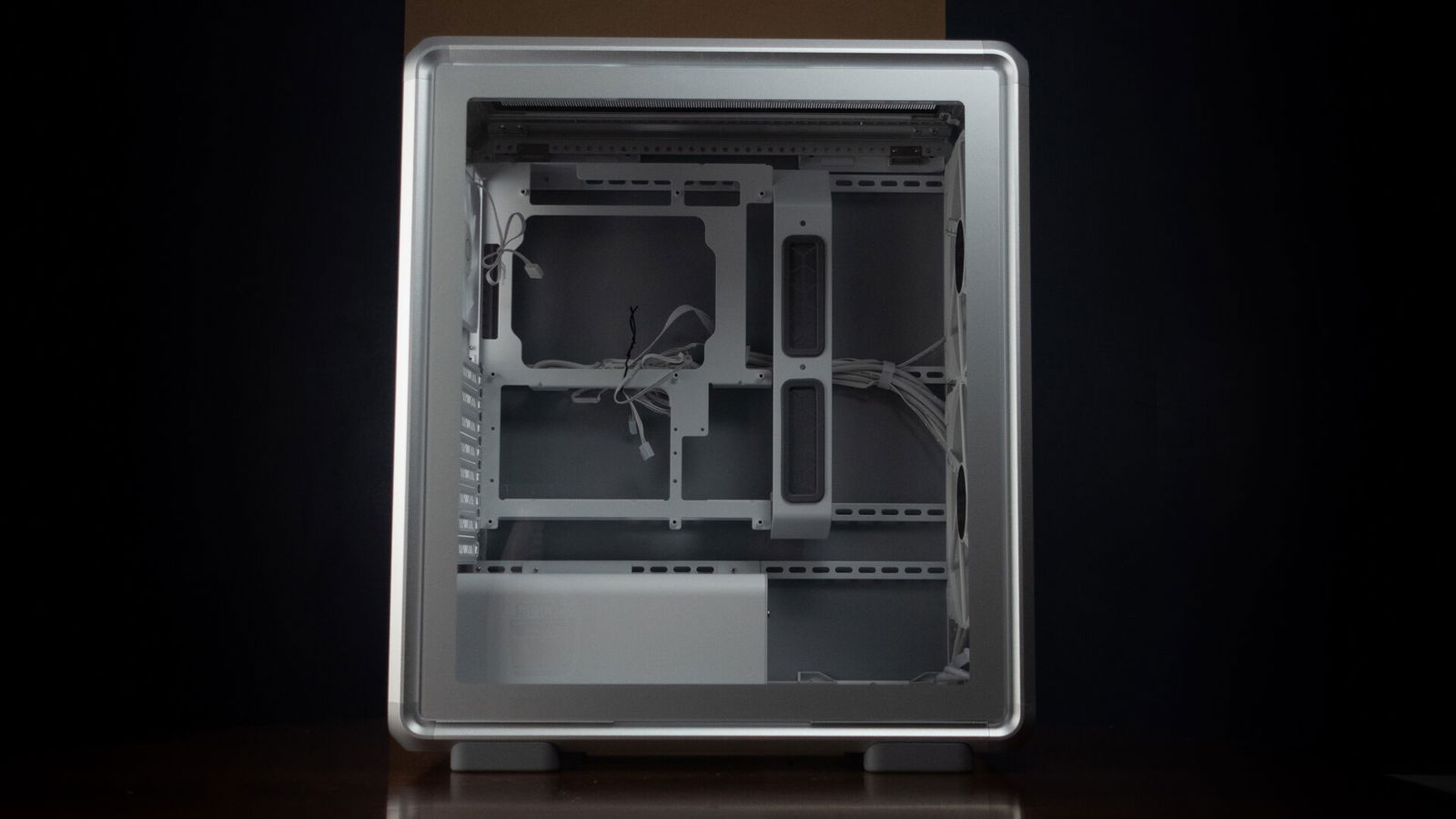

The side panels are the only design element that feels distinctly modern, though even these have been styled with restraint. One features crystal-clear tempered glass framed by a one-inch sandblasted bezel, while the other uses fully sandblasted glass backed with a matte grey liner facing the interior. The top and front covers consist of 2mm-thick sheets of finely perforated aluminum. All panels attach magnetically to an all-metal exo-structure, sitting flush within the frame and surrounded by a rounded bevel just deep enough to slip a finger under for easy removal.
The build quality of the Cooler Master MasterFrame 500 Mesh is phenomenal. I’ve never owned a case this sturdy. Even with the metal front cover and tempered glass side panels removed, the aluminum alloy exo-structure refuses to flex. The case isn’t just a conceptual platform; it’s strong enough to be a literal one. I stood on it. Cooler Master doesn’t recommend this test, but their press release said it could be done—they even included a picture. As both a reviewer and a fool, I had to try it myself. I can proudly report that even under 180-pound full-body jiggle force, the case didn’t budge.
“The build quality of the Cooler Master MasterFrame 500 Mesh is phenomenal.”

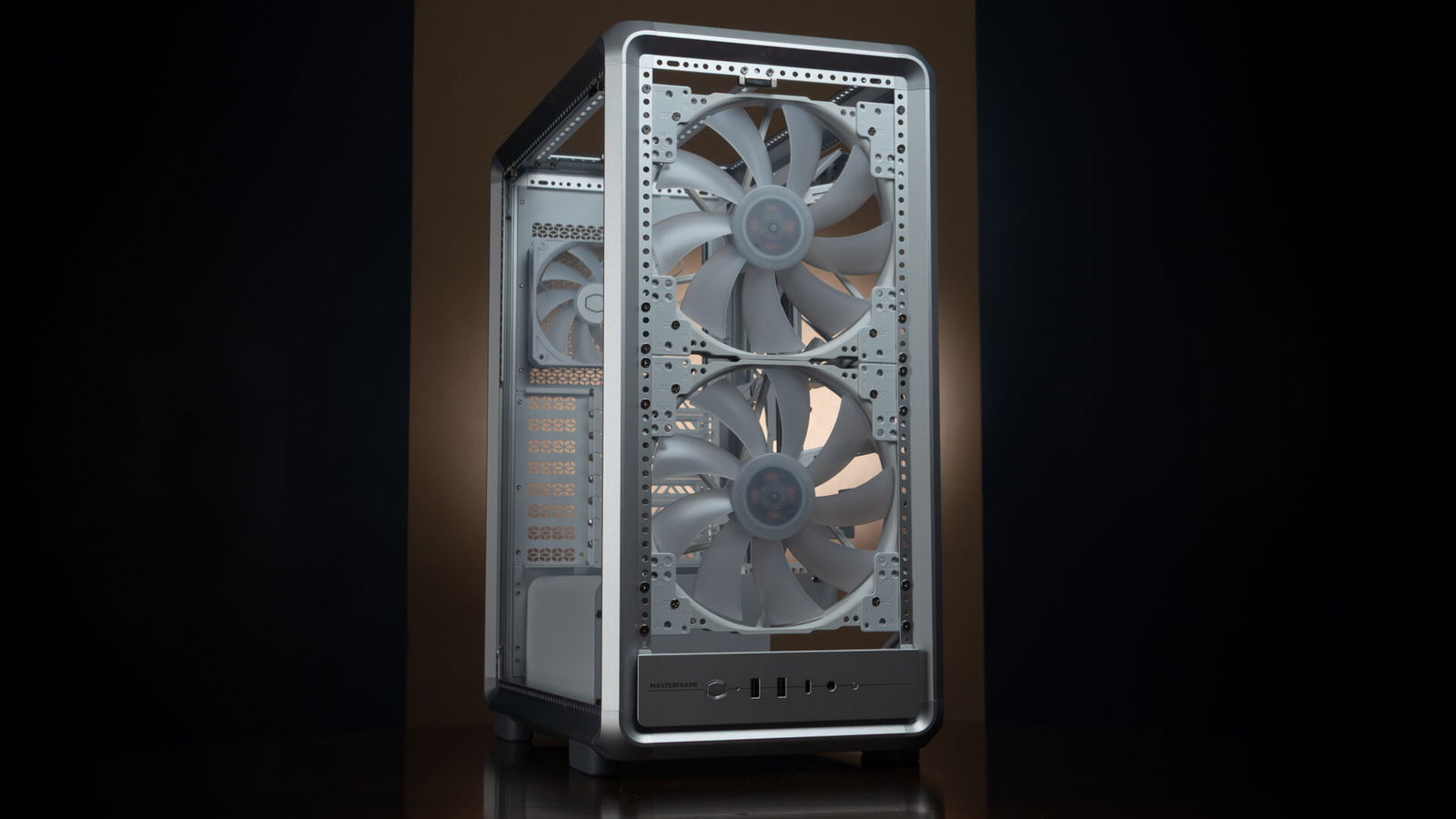

The third area where the MasterFrame 500 Mesh lives up to its premium price is arguably the most critical: airflow and temperature control. Its 60.9-litre interior is cooled by two massive Cooler Master SickleFlow 200mm fans behind the front panel and a SickleFlow 120mm fan at the rear. For alternative configurations, the front fan rail supports three 120mm fans, two 140mm or 180mm fans, or radiators up to 360mm. The top fan rail matches the front, and there’s clearance for CPU coolers up to 190mm tall. The case ships with either ARGB or non-ARGB fans.

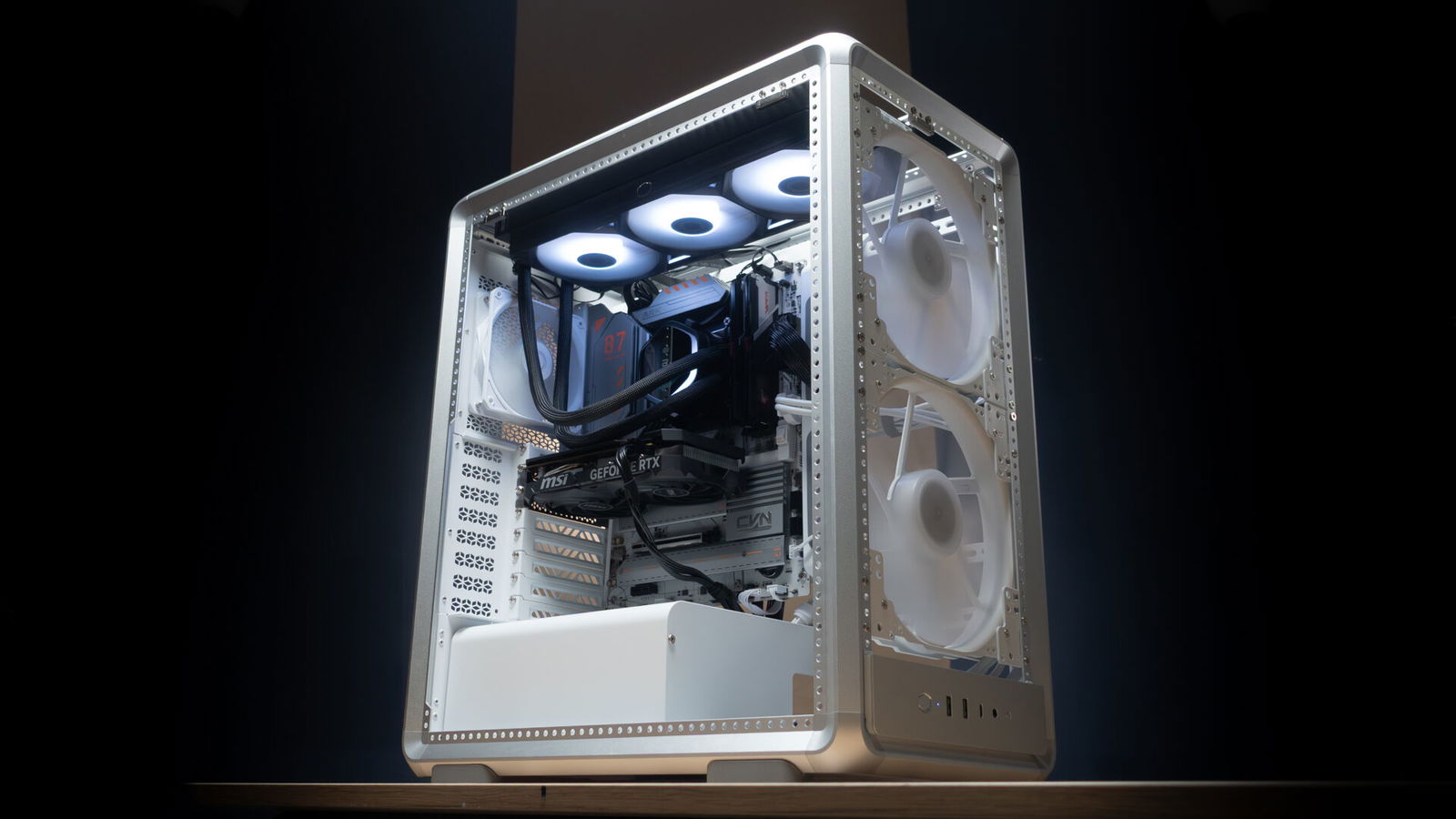

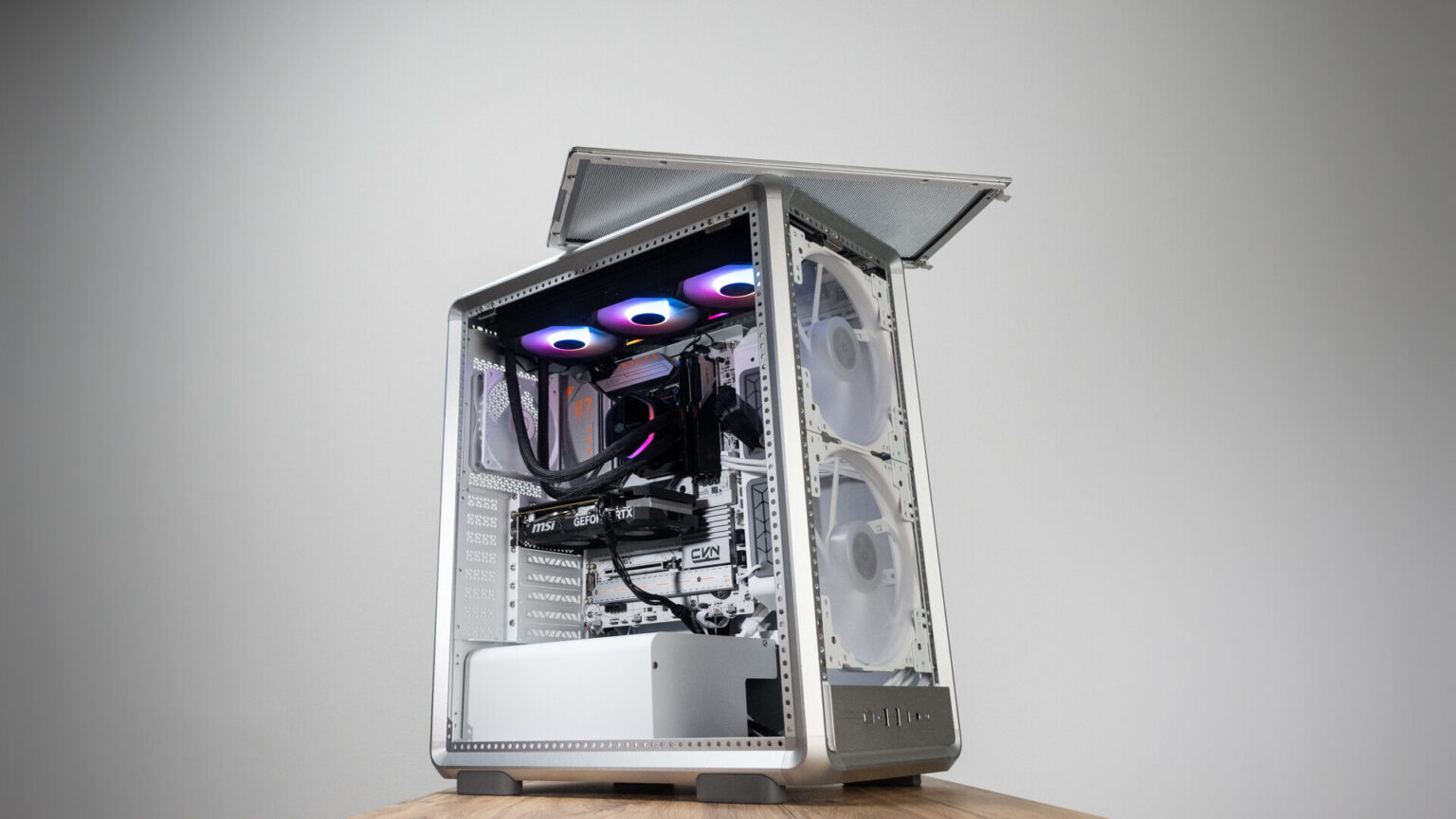

For our test build, we loaded the Cooler Master MasterFrame 500 Mesh with a Colorful CVN X870 ARK Frozen V14 Motherboard, an AMD Ryzen 7 9700X processor, a GameMax RGB-Smart 1050 Pro Power Supply, and an NVIDIA GeForce RTX 4060 Ti graphics card. Benchmarking was performed in two configurations: first, using the stock fan setup paired with a single-fanned Thermalright Peerless Assassin 120 CPU cooler; and second, with the stock fans plus a top-mounted Cooler Master MasterLiquid Atmos II 360—a 360mm radiator. The Atmos II 360 will be reviewed here soon.
Each setup was subjected to extended stress tests using various benchmarking tools, as well as demanding custom Blender renders and hours-long frame-rate pushing Cyberpunk 2077 sessions. The results were surprisingly close. In both configurations, under heavy load, the motherboard maintained a temperature between 20–24°C, the GPU peaked at 36°C, and the NVMe drive reached a maximum of 32°C near the end of an 8-pass 64 GiB read/write test.
The only major difference was in CPU temps. With the heatpipe cooler, the CPU averaged 45°C at idle and hit a max of 69°C under load. With the Atmos II 360, idle dropped to 38°C and maxed at just 55°C. The liquid cooler also returned the case to ambient far faster—CPU temps fell from peak to idle in under three seconds, compared to about 20 seconds with the heatpipes.
The important takeaway (and TL;DR) is that the SickleFlow 200s are beasts. Even under stress, they never spun above 730 RPM. They’re not just efficient, though—they’re eerily quiet. Once I installed the Atmos II 360, I had a few moments where I double-checked to make sure the fans were still running, because I couldn’t hear a thing.
With all that said, it’s time to talk about the internal layout and functionality of the Cooler Master MasterFrame 500 Mesh PC Case. Like the interior itself—it won’t be as pretty.
The MasterFrame series’ value proposition promises a reliable case with unlimited modification options, adaptability, unrivalled personalization, and strong cooling performance—all while staying within the mainstream frames of the budget. Honestly, I’m not entirely sure what that last phrase means, but that’s how they worded it. Cooler Master delivers on these promises, but how they do it—and what they overlook—make the entire product less compelling.

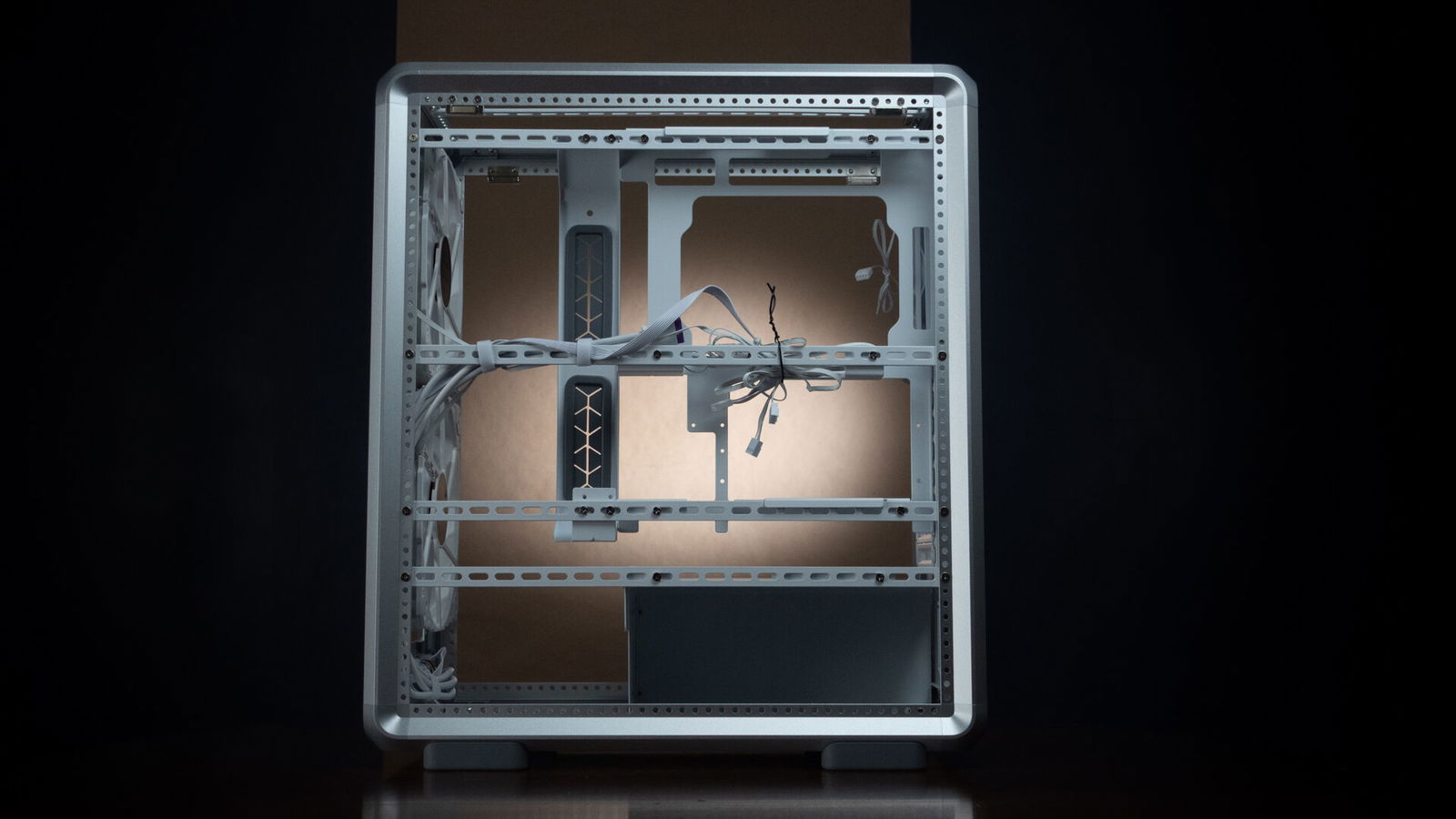

The interior uses removable, slotted support beams fixed to a grid of threaded holes in the frame. The motherboard tray, PSU shroud, and other modules hook and screw into these beams, allowing you to reorient the case, lower the motherboard, top-mount the PSU, or install a GPU vertically. The IO panel and case fans are also repositionable—but this modularity comes at the cost of practicality and a clean, squared-away interior.
While the case opens without tools, moving or adjusting anything inside often means dismantling entire sections and removing multiple screws. To keep the support beams accessible, there’s no shroud between the front of the case and the motherboard tray, leaving them permanently exposed. This does create space for vertical GPUs, but if your card plugs directly into the PCIe slot, a quarter of your interior will be nothing but skeletal structure. It’s an interesting industrial aesthetic—but it leaves nowhere to hide your cables.

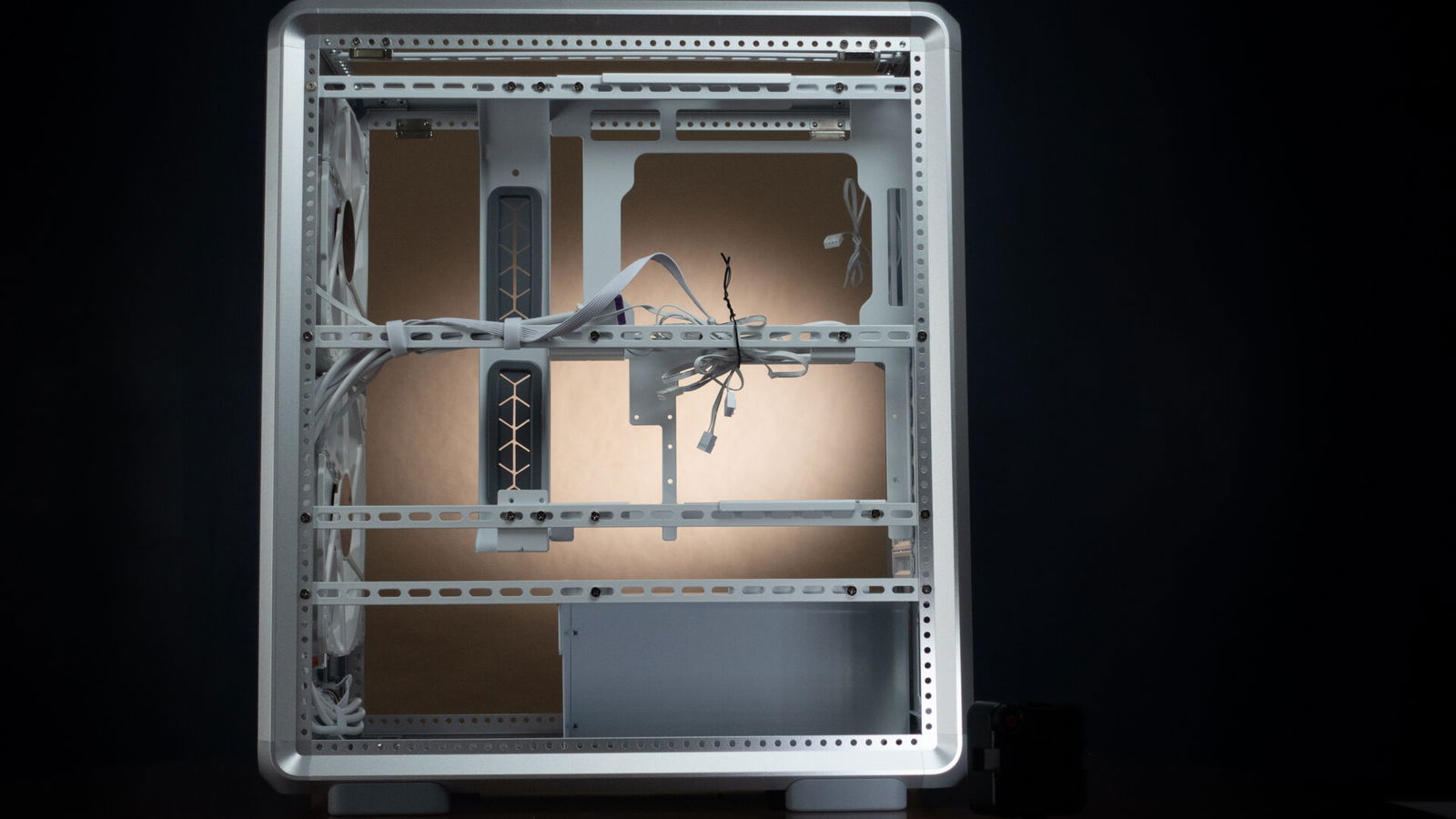

Which brings me to my biggest peeve: cable management. Running clean cables in this case is a nightmare. The few routing holes are misaligned, mostly ungasketed, and awkwardly placed, while most cables have to cross wide-open sections of the frame. There’s nowhere to hide them, nowhere to tuck them, and the only tie-down points are on the support beams, leaving your zip ties on full display.
For all its space and modularity, the case also has some curious restrictions, most notably in how the power supply can be installed. PSUs can only be mounted facing out. That’s my preferred orientation, but some RGB units are meant to be side-mounted or have their fans facing into the system. I dislike upward-facing PSU fans, but the dual SickleFlow 200 array makes it a viable option in this case. There’s also no clearance between the side panel and support beams to rear-mount an SSD, and the packaging only includes enough drive rails for one hard drive.
If you pride yourself on a clean build, the only way to make this case work is by designing and printing your own cable raceways, shrouds, and drive caddies. That’s asking a lot from customers who just dropped $200 on a case.
For the average modder or dedicated enthusiast, this case will be a tough sell. It makes more sense as a starting point for system integrators or IT departments building banks of identical machines. When multiple units are configured the same way, the effort spent on custom parts would start to pay off. The tank-like build quality also suits shared spaces, such as computer labs or offices. As a home for one-off gaming builds, though, you’d be better off with a slightly less modular but more complete case, such as the Corsair FRAME 5000D.
The Cooler Master MasterFrame 500 Mesh sits at the intersection of tasteful styling and ambitious engineering. It’s a tricky balance, and while the design holds steady, the execution lacks finesse. This isn’t a turnkey solution, but at its core, it’s a solid case with the potential to be exceptional. Unlocking that potential demands more effort from the user than you might expect from a premium-priced chassis. Still, for builders with the skill, determination, and vision to take advantage of its unconventional layout, $199 is a fair price for a case built to last a lifetime.
- FreeForm 2.0 Aluminum Exo-structure: Open-frame design enables flexible configurations and supports various installation scenarios.
- Flexible Motherboard Support: Compatible with Mini-ITX to E-ATX (up to 305 x 330mm) to accommodate a wide range of system builds.
