The H3 Flow is the latest addition to NZXT’s lineup of low-cost, high-quality PC cases—and the brand’s first dedicated micro-ATX tower. The NZXT H3 Flow carries over the sleek, modern aesthetics and rock-solid build quality of its larger ATX counterparts, offering elegant solutions that keep its smaller size from limiting its versatility. Mostly.

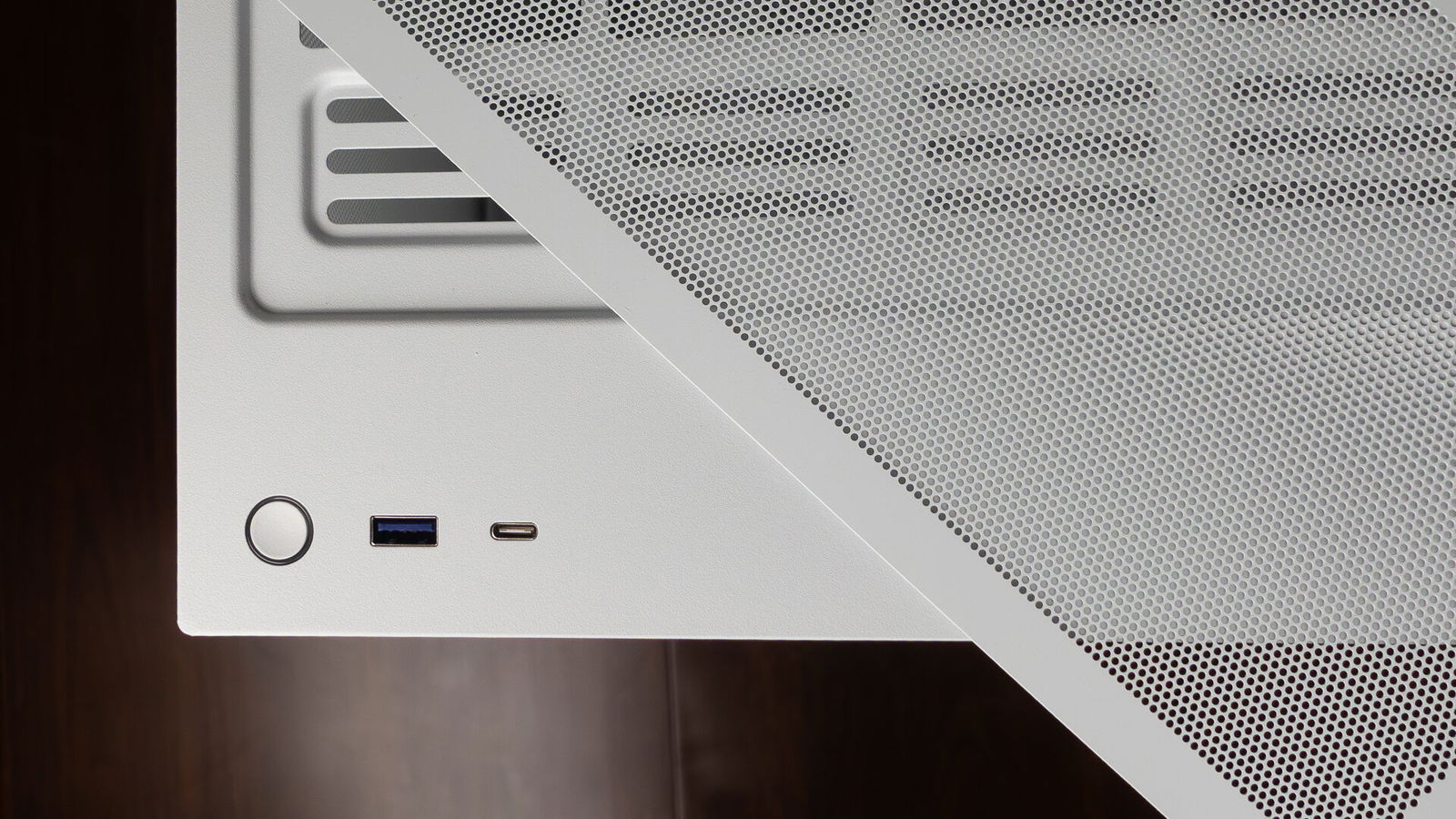

At $79.99, the H3 Flow strikes an impressive balance between value and high-end style. However, that high-end style prioritizes clean lines over a more complete set of top-panel ports. If a case with no audio jack and limited USB port selection isn’t a concern, the H3 Flow’s thoughtful, builder-friendly design makes it an excellent choice for first-time builders and enthusiasts alike.
At its core, the H3 Flow is a scaled-down redesign of the slightly larger H5 Flow. Both cases are dual-chamber chassis built to support full-sized components and maximize airflow. The updated design improves usability, with refinements to the side panels and motherboard tray, but carries over a few quirks from previous models. Minor changes to materials and modularity also make the H3 Flow feel a bit more conventional than other NZXT cases. That said, at $79.99, its build quality remains ahead of the curve.

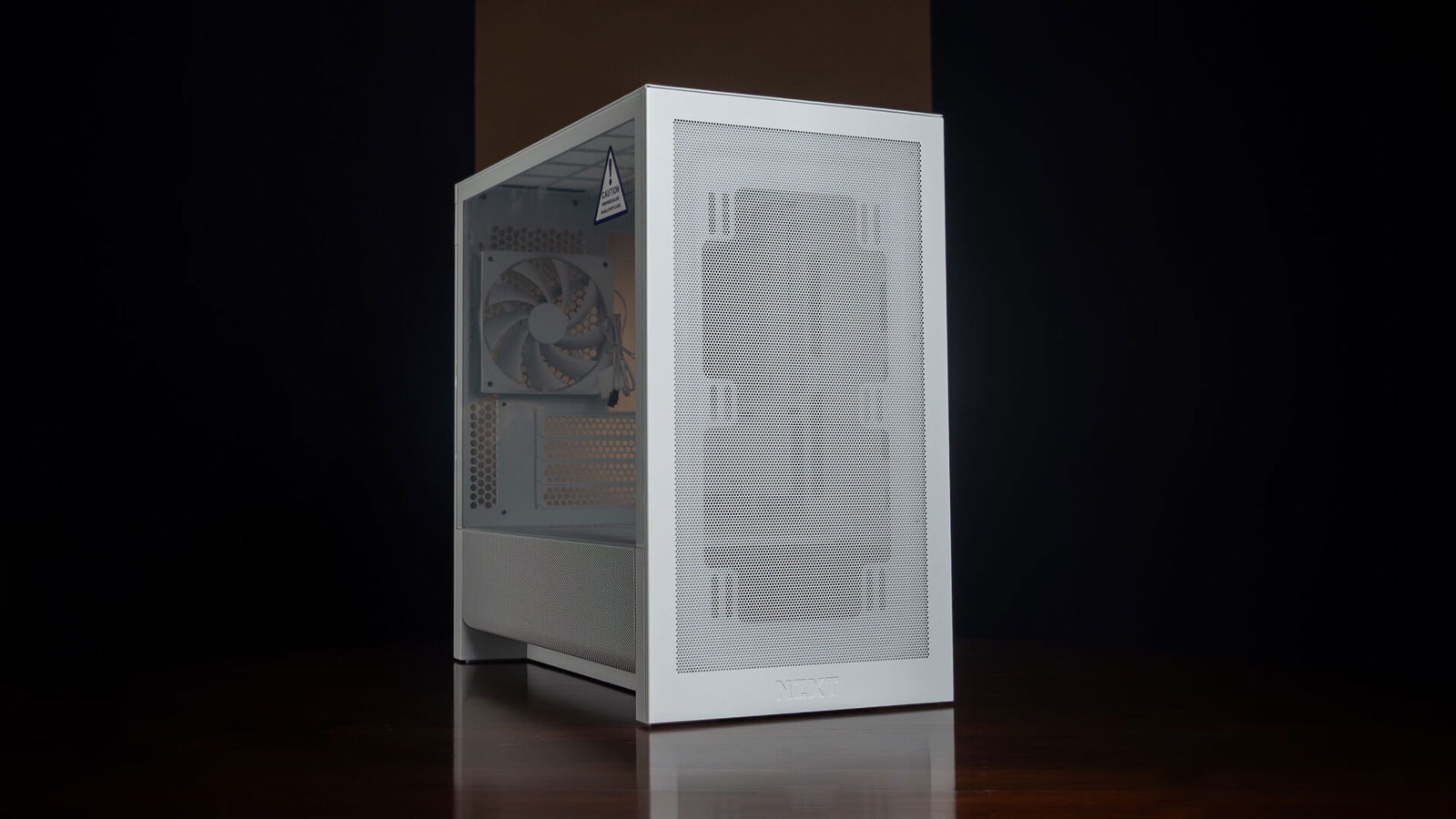

The most distinctive features of NZXT cases are their minimalist aesthetic and toolless design. The H3 Flow shares the same clean lines and ultra-fine mesh grilles that have made the lineup so popular. Visually, it’s nearly identical to the H5 Flow, with a flat mesh front panel, crystal-clear side panel, and a top cover that’s about three-quarters ventilated. Aside from being a bit shorter, the only visible difference is a softened bevel on the fixed side of the power supply shroud. It’s not until you start taking the case apart that the real differences become apparent.
“At its core, the H3 Flow is a scaled-down redesign of the slightly larger H5 Flow. Both cases are dual-chamber chassis built to support full-sized components and maximize airflow.“
The front cover remains mostly unchanged—a simple mesh panel that covers the front fan array. It attaches with snap-fit clips and guidance pins, creating a connection that feels solid and durable yet pops off easily for cleaning with a bit of gentle pressure. The mesh is composed of tiny, densely packed holes stamped into a sheet of metal. The holes may be small, but they’re not small enough to prevent dust from being sucked into the fans; an additional filter layer would be a welcome upgrade for future models.
The top cover has undergone a complete redesign. Unlike previous models that used a one-piece removable panel, the H3 Flow features a fixed top with a thin magnetic mat covering the air intake cutaways. Magnetic mats are increasingly common in budget chassis, and even when done well, they tend to look cheap. That’s not the case here. The fit and build quality of NZXT’s mat are exceptional. The magnets are strong and well-bonded, and bending the mesh doesn’t leave a crease. It’s also perfectly sized, and when placed in its groove, it takes on the appearance of a seamless panel.

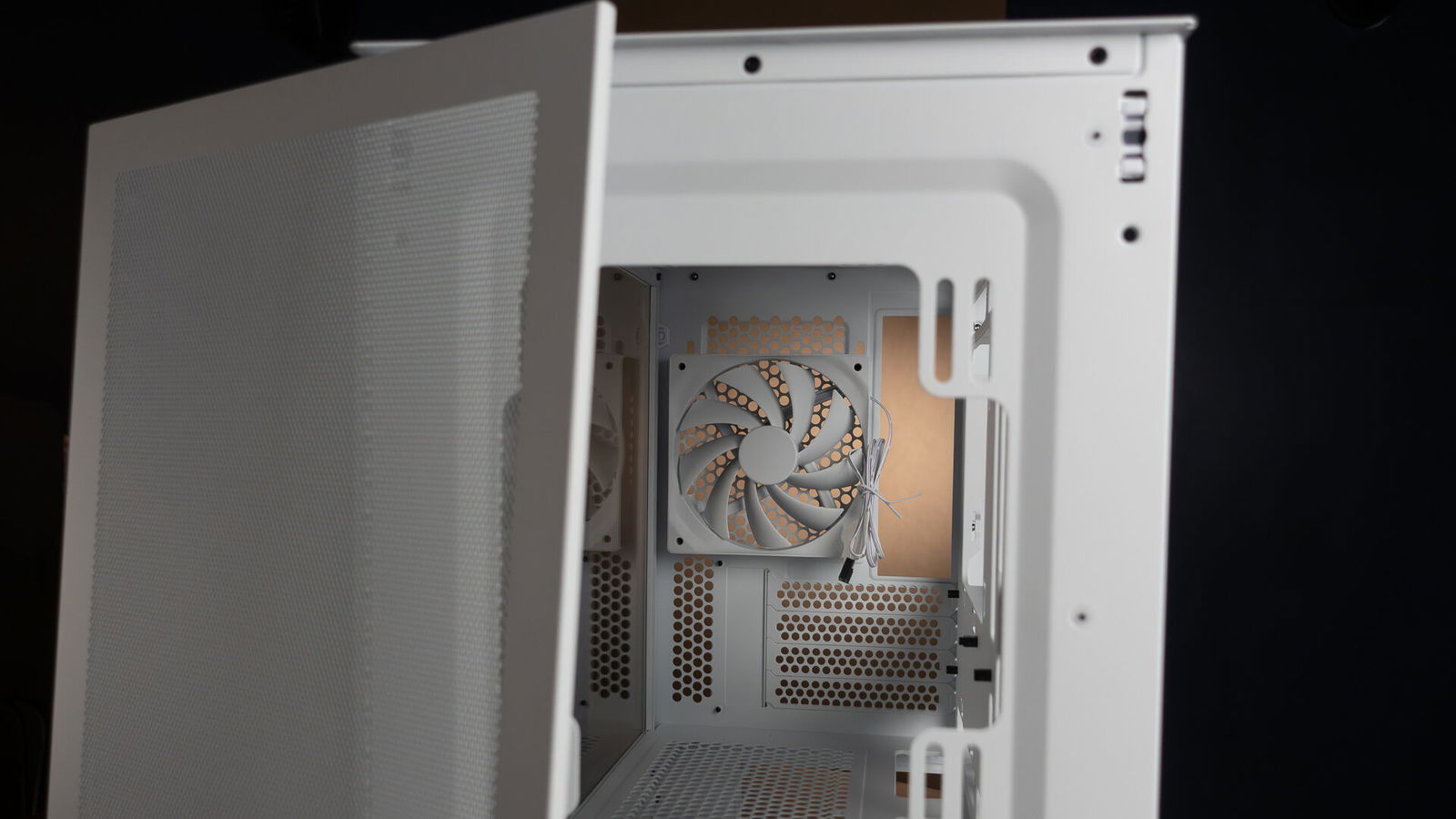

The case also features a crystal-clear tempered glass side panel that’s miles ahead of what you usually see in inexpensive cases. Part of what makes it so impressive is the quality of the glass itself; the real standout, however, is the thumbscrewless design. The panel is secured with small metal pins along the bottom and a spring-actuated latch near the top. With a push and a pull, it pops right off. It’s an ingenious setup—and one of the fastest panel removal systems I’ve come across.
What surprised me most about the H3 Flow was its size. It’s much larger than I expected a micro-ATX case to be. At 400 mm (15.75 in) tall, it’s only marginally shorter than my mid-tower, and at 225 mm (8.86 in) wide and 389 mm (15.31 in) deep, it’s also noticeably stouter in both directions. It may be a small form factor case, but its footprint is anything but.

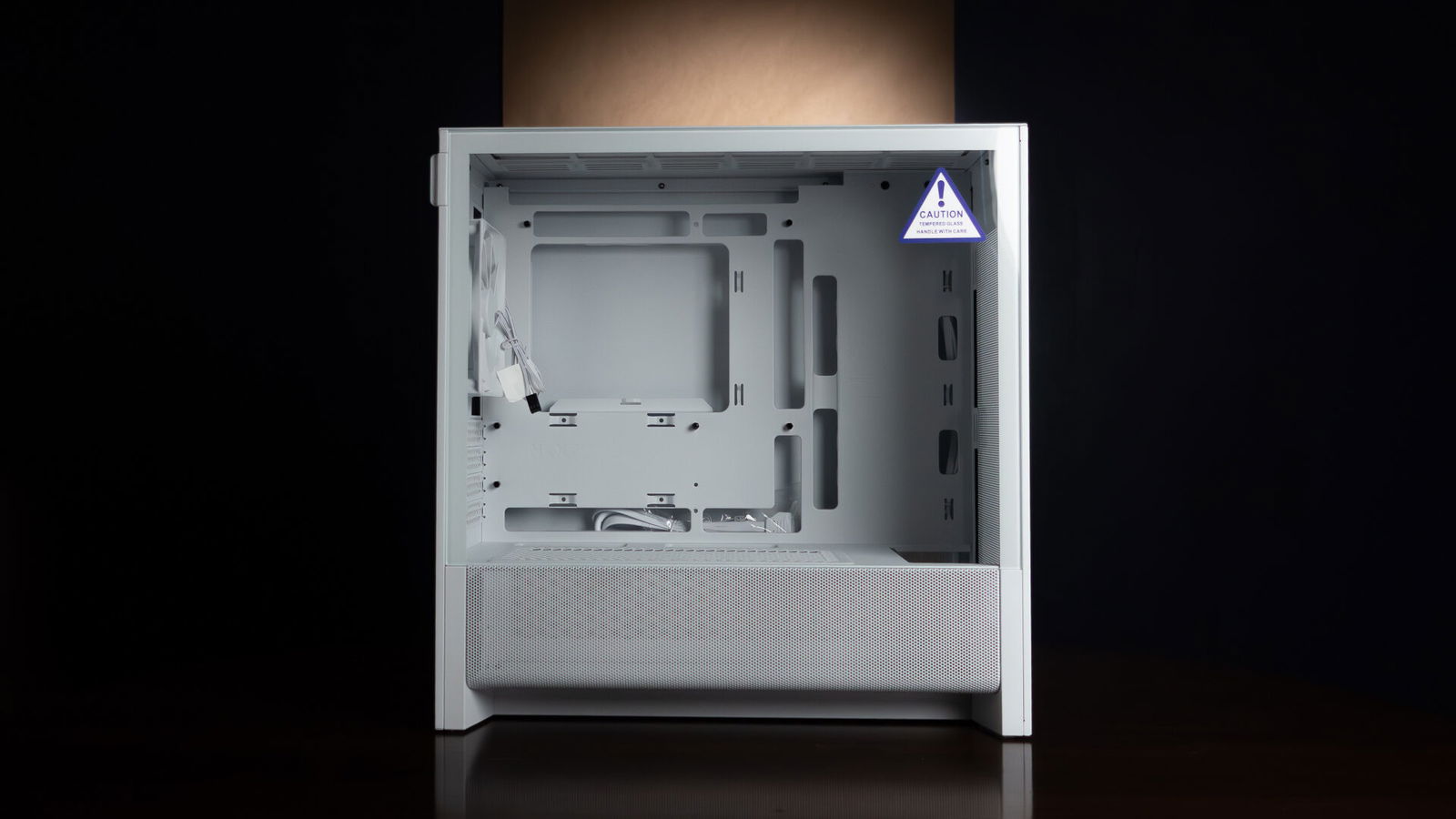

But that surprising size is what enables the H3 Flow’s greatest strength—its builder-friendly interior. Officially, it features a two-chamber design, but the generous space between the side panel and the rear of the motherboard tray makes it feel more like two and a quarter chambers. The top chamber of this space includes integrated cable channels and an abundance of tie-down points. For a traditional build, it’s a remarkably spacious amount of room, but it’s designed specifically with back-connect motherboards in mind, such as the MSI B650M Project Zero.
The bottom chamber is similarly spacious but also frustratingly restrictive. The massive PSU compartment can accommodate power supplies with lengths up to 185 mm but has no perforations on the floor panel, meaning that power supplies will have to face up, blowing directly into the downdraft of the GPU, and be reliant on the front intake fan to push the air out the back of the case. For a case built with airflow as a primary concern, this feels like an odd choice.
The limitations of the bottom chamber also extend to the hard drive bays. No bracket is included with the case, so drives must be mounted directly to the floor plate. The mounting position can accommodate two 2.5” SSDs or a single 3.5” drive. However, there’s also room on the motherboard tray for a third 2.5” drive, but it will have to be attached before installing the motherboard.
Moving to the front of the main chamber, things get a little tighter. There’s plenty of room for large components and cooling options, but installing them is best done with a plan made ahead of time, because once fans and radiators are installed, reaching the motherboard headers becomes a real challenge.
The H3 Flow supports up to seven fans: four 140 mm fans split evenly between the front and top panels, plus three 120 mm fans—two on the bottom and one at the rear. Alternatively, the top panel can accommodate a 240 mm radiator, while the front supports radiators up to 280 mm. However, front-mounted fans or radiators will reduce GPU clearance. Without anything installed on the front mounts, the case can support graphics cards up to 377 mm in length. With front fans, that limit drops to 352 mm, and with a radiator, it’s reduced further to 317 mm.
“For first-time builders who need to stock up on fans anyway, the H3 Flow is a remarkably sturdy chassis that’s intuitive to work with and likely to outlast fully equipped budget cases.”
Whatever cooling option you choose, however, you’ll need to purchase it separately. Out of the box, the H3 Flow only comes with a single 120 mm rear fan, which is a consideration that makes the $79.99 price a little less compelling. If you’re in the market for a case with this much fan support, chances are you’ll probably want some fans! Currently, NZXT F140Q Quiet Airflow Fans (the 140mm versions of the included 120 mm F120Q fan) sell for $16.99 each on Amazon.com. For the case to function as intended, you’d need to buy four to cover the top and front intakes, increasing the build cost by almost $70.
If you already have fans from an old PC, $79.99 is still an excellent price for a case of this quality. However, with the added cost of fans, the price approaches that of higher-end cases like the Fractal Design Pop Mini Air, which includes three fans and a more robust I/O selection. When competing with higher-end cases, the H3 Flow’s advantages lose their edge, and limitations like its lack of an audio jack start to look downright Spartan.
Ultimately, the H3 Flow is an excellent case. It’s not quite the budget-friendly option its price suggests, but even when competing in a mid-range bracket, its build quality, style, and versatility hold their own. For enthusiasts, it’s a simple, highly customizable platform with ample room for upgrades. For first-time builders who need to stock up on fans anyway, the H3 Flow is a remarkably sturdy chassis that’s intuitive to work with and likely to outlast fully equipped budget cases. If you’re a fan of NZXT’s clean, minimalist aesthetic and don’t mind making a few additional investments—the H3 Flow is a solid foundation for your next PC.
