Expanding the NITRO charged gaming experience with exciting new accessories
Key features:
- SAPPHIRE NITRO+ Hybrid Fan Blade Design & Performance
- User Controlled Pump and Fan Speed Customization
- High Quality EPDM Tubes with Nylon Mesh Sleeves
- ARGB Pass Through Connector for maximized PC aesthetic customization
- ASETEK 7th Gen Pump for maximal thermal performance

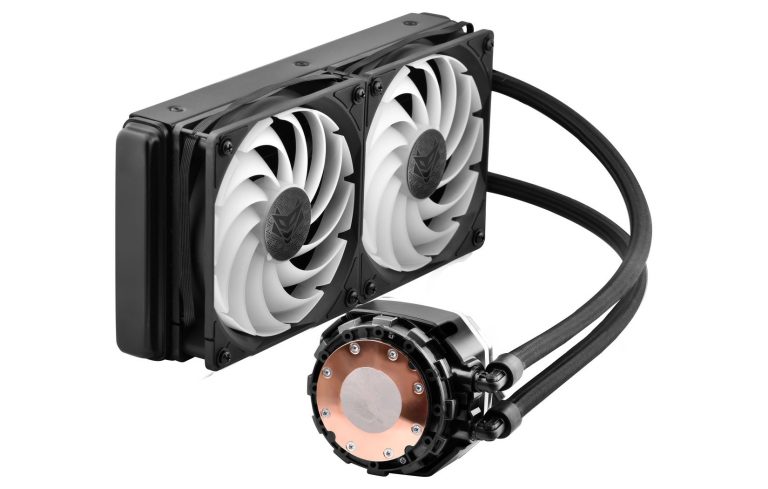

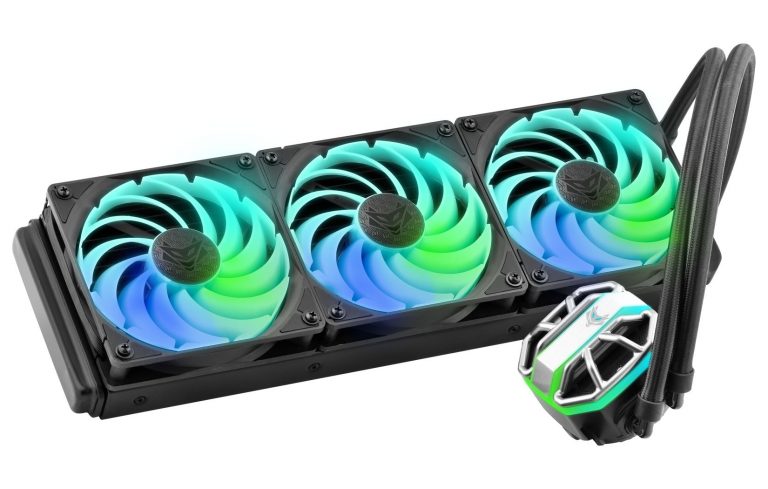

SAPPHIRE Technology announces the latest addition to the NITRO+ Gaming Series product lineup with two new AIO CPU Coolers – the SAPPHIRE NITRO+ S360-A and S240-A AIO CPU Cooler. A combination of our SAPPHIRE NITRO+ Hybrid Fan Blade and an Asetek 7th Gen Pump ensures optimal thermal performance coupled with high quality EPDM Tubes with Nylon Mesh Sleeves. With a brand new unique organic “spider” pump cap design and beautiful ARGB accents customizable with third party devices, the new SAPPHIRE NITRO+ AIO CPU Cooler Series is bound to be an integrated piece in any PC.
The Innovative NITRO+ Hybrid Fan Blade
The radiator fans on the SAPPHIRE NITRO+ AIO CPU Coolers are fitted with the innovative NITRO+ Hybrid Fan Blade. A traditional axial fan is quiet but lacks the air pressure to push down the air to the components. A blower fan has strong air pressure but is noisy at high speed. The NITRO+ hybrid fan design combines the strengths of both by improving the downward air pressure of the axial fan design while keeping the fan noise low. During SAPPHIRE’s internal testing, there is a 4°C and 5dBA improvement compared to other fans.
Longevity Driven Design
During operation under light load conditions on the CPU, pump and fan speeds are adjustable. Users can adjust the speeds of the pump and the fan to ensure a quieter experience and a customized speed resulting pump and fan longevity. The AIO EPDM tubes are coated with Nylon Mesh Sleeves as an effective way to reduce the evaporation rate of liquid to a minimum, and avoids damage caused by friction or collision for high quality of life.

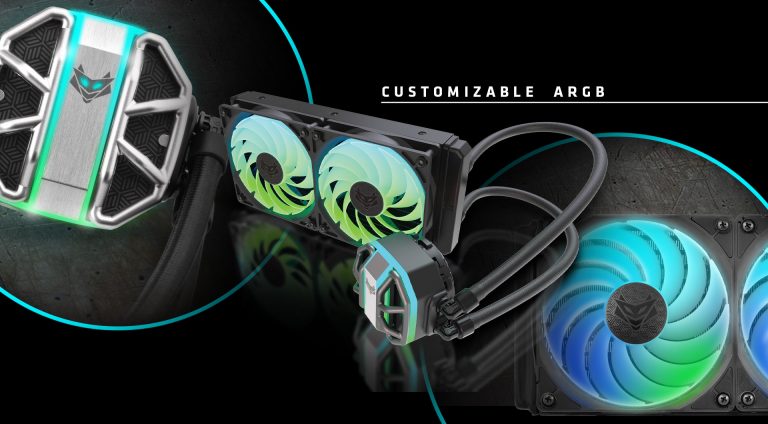

Aesthetic-Centric ARGB Possibilities
Both the radiator fans and the pump are equipped with ARGB controllable and customizable through the motherboard. The frame of the “spider” pump cap design as well as the iconic NITRO+ eyes will light up with ARGB once the SAPPHIRE NITRO+ AIO CPU Cooler is in use. The ARGB Pass-Through Connector enables users to connect an additional ARGB device to further expand and customize the gaming PC to the aesthetic of their choice.
Asetek 7th Gen Pump
The SAPPHIRE NITRO+ AIO CPU Cooler Series utilizes Asetek’s 7th Gen Pump, a performance-engineered pump and cold plate delivering up to 15% greater thermal performance over previous generations of Asetek’s leading-edge solutions. A first for the industry, it is the first desktop liquid cooling product to feature Out-Of-Bounds temperature sensing. The liquid temperature is continuously monitored by the cooler and automatically boosts pump speed when necessary to keep thermal temperatures low with smooth uninterrupted system operation for an immersive gameplay experience. Under-the-hood system enhancements ensure quieter operation versus previous generations.
A Myriad of Compatibility
The SAPPHIRE NITRO+ AIO CPU Cooler Series is entirely capable of handling both AMD and Intel high-end CPUs. The incredible cooling performance in conjunction with low noise performance ensures greater results compared with traditional air cooling. All AMD AM4 products are supported alongside INTEL LGA 115X / 1200 / 20XX and 1700 products for a high range of CPU compatibility.
Availability
The SAPPHIRE NITRO+ S360-A AIO CPU Cooler and SAPPHIRE NITRO+ S240-A AIO CPU Cooler is shipping now, and will be available from selected SAPPHIRE e-tailers and retailers worldwide.
SpecificationsModel4N005-02 NITRO+ S360-A AIO CPU Cooler4N005-01 NITRO+ S240-A AIO CPU CoolerRadiatorRadiator Dimensions: 394mm x 120.5mm x 52.5mm
Radiator Material: AluminumRadiator Dimensions: 273mm x 120.5mm x 52.5mm
Radiator Material: AluminumRadiator FanSystem Fans:
(120mm x 120mm x 25mm) x3
Dual Ball Bearing
System Fan Speed:
Minimum 450rpm (+/-100rpm)
Maximum 2400rpm (+/-100rpm)
Fan Noise (min-max): 17.9dBA – 36.2dBA
Radiator Fans with ARGB: Yes
PWM Control: Yes
Pump: Asetek 7th Gen
Cold Plate Material: Copper
Variable Pump RPM: Yes / 800-2800 (+/-300rpm)
Pump Noise (Maximum): 20dBA
Fan Input Connector: Yes, 6-pin
ARGB Input Connector: Yes, 3-pin
Dimensions (Cap + Pump): 76.22mm x 72.8mm x 59.18mmSystem Fans:
(120mm x 120mm x 25mm) x2
Dual Ball Bearing
System Fan Speed:
Minimum 450rpm (+/-100rpm)
Maximum 2400rpm (+/-100rpm)
Fan Noise (min-max): 17.9dBA – 36.2dBA
Radiator Fans with ARGB: Yes
PWM Control: Yes
Pump: Asetek 7th Gen
Cold Plate Material: Copper
Variable Pump RPM: Yes / 800-2800 (+/-300rpm)
Pump Noise (Maximum): 20dBA
Fan Input Connector: Yes, 6-pin
ARGB Input Connector: Yes, 3-pin
Dimensions (Cap + Pump): 76.22mm x 72.8mm x 59.18mmTubeTube Dimension: 400mm
Tube: EPDM
Mesh Sleeves: YesCPU SupportAMD AM4
INTEL LGA115X/1200/20XX/1700SAPPHIRE FeaturesARGB on Pump Cap and Radiator Fans
ARGB Pass-Through Connector
Hybrid Fan Blades
Dual Ball Bearing Radiator Fans
PWM FanARGB on Pump Cap and Radiator Fans
ARGB Pass-Through Connector
Hybrid Fan Blades
Dual Ball Bearing Radiator Fans
PWM Fan
