I am a big fan of mixing a bit of classic style with my computing (check out any of my reviews of Fractal Design cases to see what I mean), so when we were offered the GIGABYTE X870E AERO X3D DARK WOOD motherboard, I jumped at the chance. This is a premium AM5 motherboard that blends a dark, furniture-like finish with the full X870E feature set, and it looks absolutely stunning while doing so. It feels aimed at builders who want strong connectivity, solid power delivery and a more restrained look than the usual gamer-heavy board designs, while still keeping the focus on performance. And you know what? I think GIGABYTE nailed it.

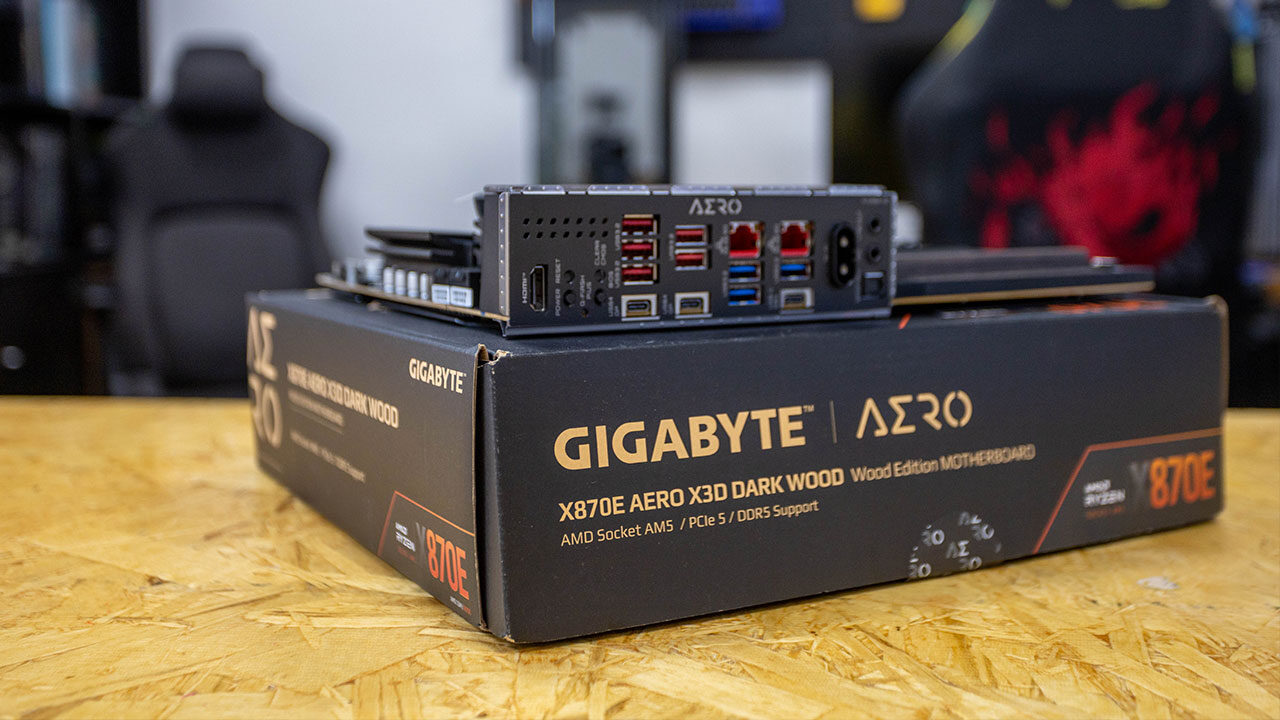

When you first open the box, the GIGABYTE X870E AERO X3D DARK WOOD stands out because of how unlike many gaming boards on the market it is. GIGABYTE leans hard into the wood-and-dark-metal look here, pairing the black PCB and heatsinks with dark wood accents and a leather pull tab, which gives the board a more refined feel than a typical high-end ATX model.
It is a design that seems built for showcase systems, but it does not feel like an empty styling exercise because the finish is matched with the same premium hardware treatment found elsewhere on the board. Granted, this is not a design for everyone, but the way GIGABYTE has leaned into it helps sell the overall concept. I, for one, am a fan of boards that buck the norm and try something different.

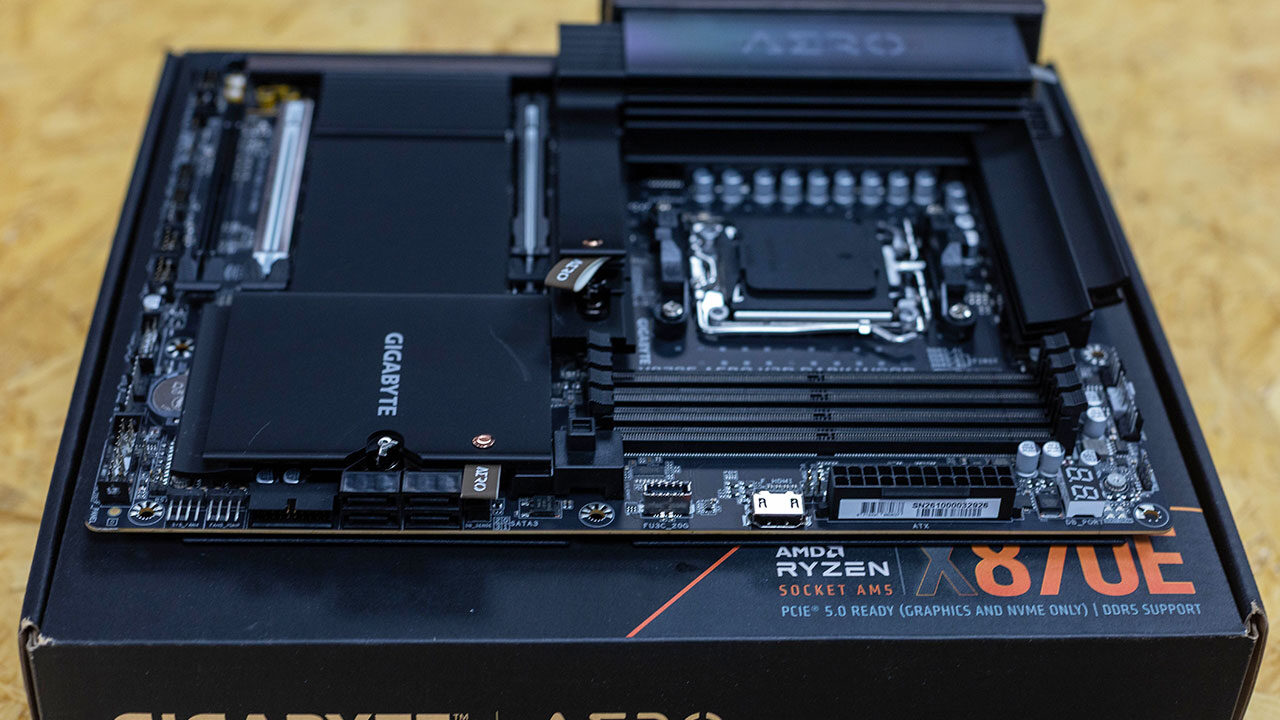

When you look past the unique concept of the X870E AERO X3D DARK WOOD, the layout is familiar for a board at this tier, which is a good thing. You get four DDR5 DIMM slots, four SATA 6 Gb/s ports and four M.2 slots, with two running PCIe 5.0 and two running PCIe 4.0. There are also three full-length PCIe slots, including a PCIe 5.0 x16 slot with GIGABYTE’s UD Slot X reinforcement, plus a second PCIe 5.0 slot that runs at x8 and a third PCIe 4.0 x16 slot that runs at x4.

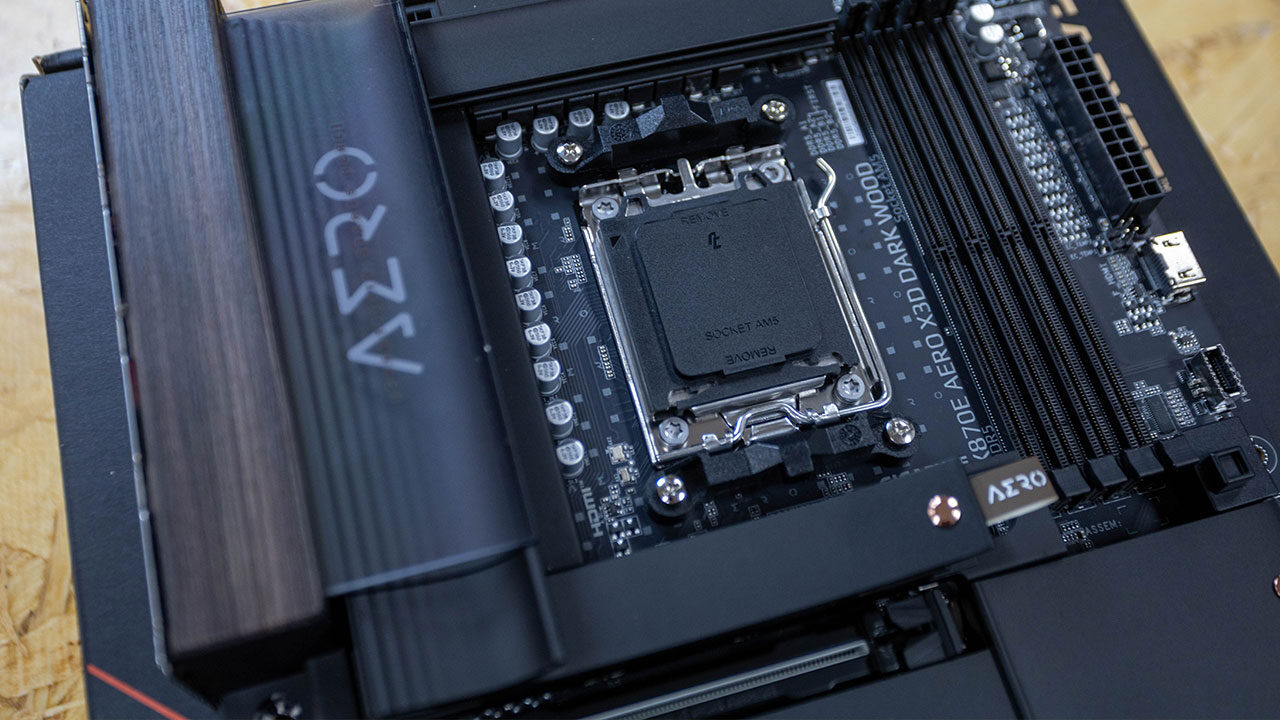

Under the hood, this board is built around AMD Socket AM5 and the X870E chipset, with support for Ryzen 9000-, 8000- and 7000-series processors. Power delivery is handled by a 16+2+2 twin digital VRM design, using 16 Vcore phases at 60 A, two SoC phases at 60 A and two miscellaneous phases at 60 A. GIGABYTE also uses an eight-layer PCB, 2X Copper, premium chokes and capacitors, and an 8+8 parallel power design to keep things steady under load. Much like most of the boards we have looked at from GIGABYTE at this level, you will find many of the same quality components and overall features, just with a bit less RGB and a bit more classical elegance.
“When you first open the box, the GIGABYTE X870E AERO X3D DARK WOOD stands out because of how unlike many gaming boards on the market it is.”
The X870E AERO X3D DARK WOOD motherboard is rated for DDR5 overclocking up to 9,000 MT/s, with AMD EXPO support, and GIGABYTE ties that to its “D5 Bionic Corsa” memory-tuning tools and AI-driven BIOS features. On paper, that makes it a good fit for builders who plan to push fast kits rather than simply run stock settings. Granted, your options may be a bit limited during the memory shortage of 2026, but the broad range of support means that when things calm down, you will have plenty of ways to upgrade your system and prepare it for larger, more complex workloads.

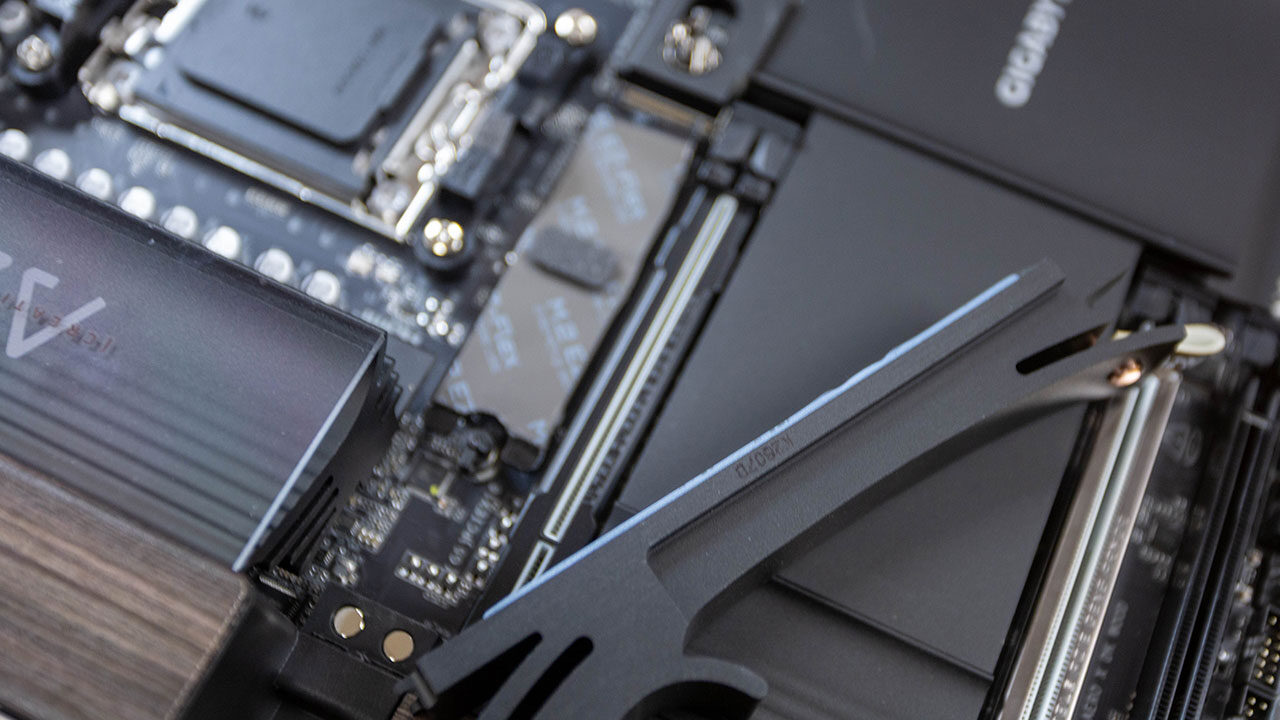

GIGABYTE gives the X870E AERO X3D DARK WOOD a heavy-duty cooling package, and that matters on a platform like this. The VRM area uses Thermal Armor Advanced with a direct-touch heat pipe, a 7 W/mK thermal pad and an integrated I/O shield, while the M.2 side gets Thermal Guard L, Thermal Guard Ext. and the M.2 EZ-Flex design. The company says the PCB thermal plate improves thermal performance by 14 percent, and its materials also point to lower SSD temperatures through the M.2 cooling system. Needless to say, this is a well-equipped board when it comes to thermals, and from our testing, it delivers without issue, even when pushing the system across a range of benchmarks.
To round out the overall usability of the GIGABYTE X870E AERO X3D DARK WOOD, they have loaded the board with PCIe EZ-Latch Plus, M.2 EZ-Latch Click, M.2 EZ-Match, Wi-Fi EZ-Plug, rear EZ buttons, Q-Flash Plus and BIOS-level tools that make setup easier. While it may seem minor, this is the kind of feature that matters once the board is actually on a bench or inside a finished system. It helps justify the price tier and is something I personally love to see on a board at this level.

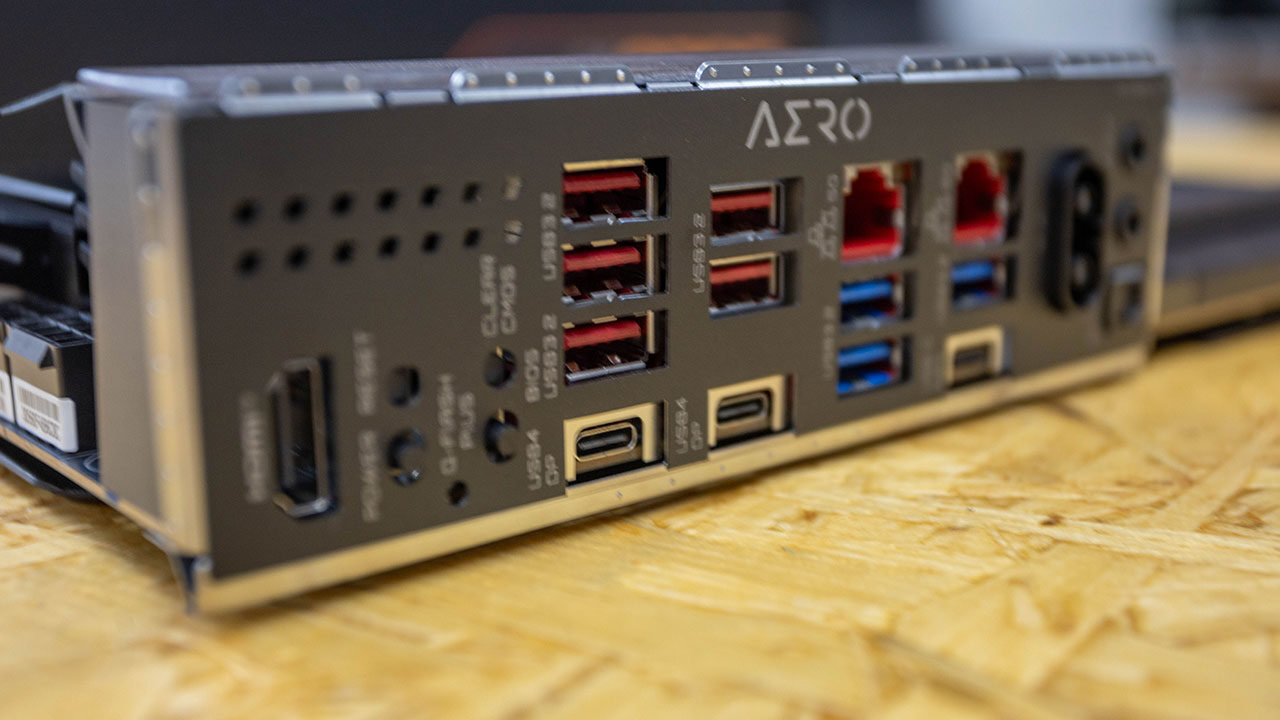

In terms of connectivity, the GIGABYTE X870E AERO X3D DARK WOOD offers a fair selection that, while not top-tier compared with some of the highest-end boards on the market, more than meets most people’s needs. The rear I/O includes two USB4 Type-C ports rated at up to 40 Gb/s with DisplayPort Alt Mode, one HDMI port, five USB 3.2 Gen 2 ports, three USB 3.2 Gen 1 ports and one USB 3.2 Gen 2×2 Type-C port. Networking is handled by two 5 GbE LAN ports and Wi-Fi 7 with a directional high-gain antenna.
Audio is based on the Realtek ALC1220 codec with eight-channel HD audio and high-end audio capacitors. It is not the sort of spec-sheet feature that will turn heads the way the wood finish does, but it rounds out the board as a genuine flagship-style component rather than a niche fashion piece, and it delivers solid audio for a range of uses.
But if you are a gamer and want to get the most out of the AM5 platform, the headline feature is X3D Turbo Mode 2.0, which uses built-in AI and hardware circuits to tune X3D processors in real time. GIGABYTE says it can improve gaming and multitasking performance, and the feature is split into Gamer Mode and Creator Mode. In practice, this is the kind of board-specific boost that sounds more impressive on a product sheet than it feels in everyday use, but it still gives the platform a clear identity and delivers some performance gains, even if they are not as groundbreaking as the box may suggest.
The board launched at $499.99 and carries a three-year warranty. That places it firmly in premium territory, so it needs to deliver on both specs and feel, and on those counts, it mostly does. The dark wood styling is more cohesive than the earlier light wood approach, and the rest of the board has enough real hardware muscle to back up the look. There are other boards on the market that are a bit more budget-conscious, but for its range of features and distinctive design, the GIGABYTE X870E AERO X3D DARK WOOD hits the sweet spot, delivering premium features without veering into the ultra-premium territory occupied by some top-end boards.
The GIGABYTE X870E AERO X3D DARK WOOD is not a cheap option, and the pricing will keep it out of more mainstream builds. Still, the mix of X870E features, a strong VRM design, PCIe 5.0 storage support, USB4, two 5 GbE ports, Wi-Fi 7 and a polished build makes it easy to see why it stands out. The X870E AERO X3D DARK WOOD is the sort of motherboard that feels built for a showcase PC first, but it does not lose sight of the basics that matter in daily use. The styling of the GIGABYTE X870E AERO X3D DARK WOOD may be the hook, but the feature set is what makes it more than a novelty.
- AMD Socket AM5: Ready to support AMD Ryzen 9000/8000/7000 Series Processors.
- Enhanced Power Solution: Digital Twin 16+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
